● High-Definition Visual Performance for Indoor Applications
● Lightweight Cabinet for Easy Installation
● Cable-Free HUB Design for Simplified Maintenance
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
Full Front Service
Easy Installation
High Contrast
Light and Thin
Light and Thin
Ultra-thin and Light
Curved
High Protection
Ultra-wide Viewing Angle
Curved

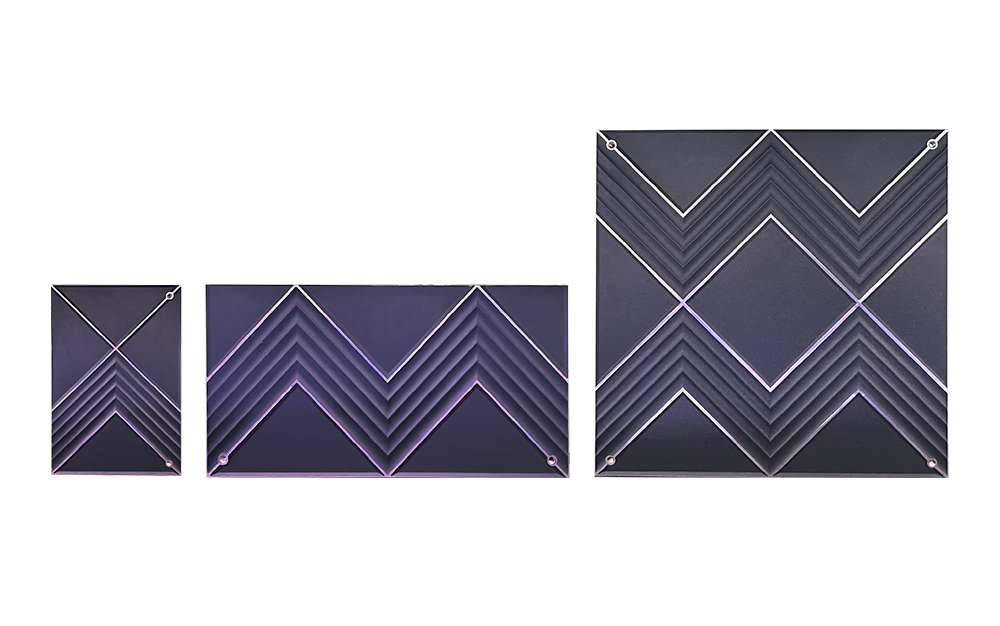

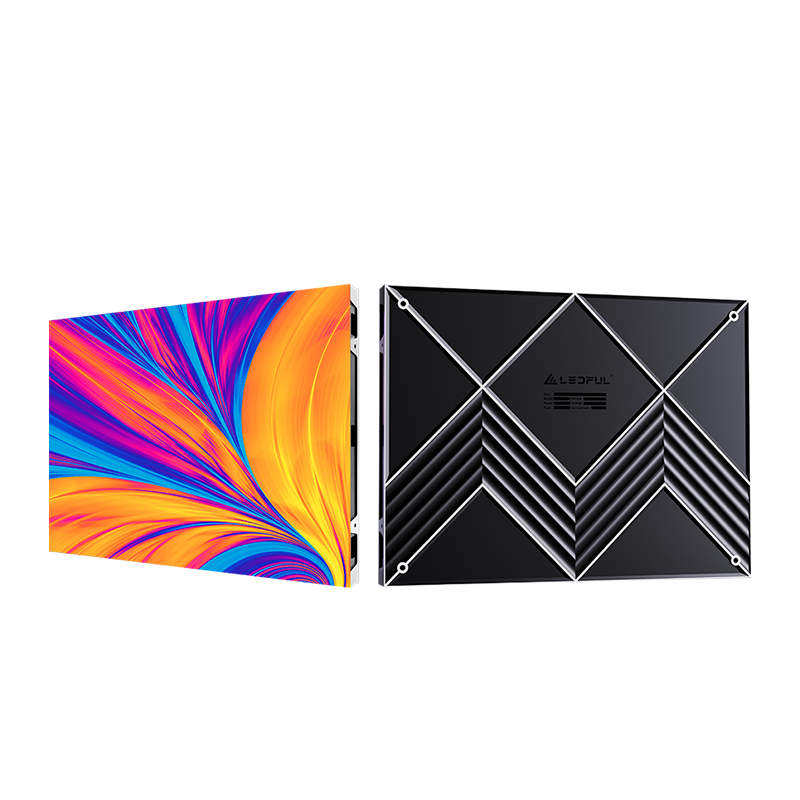

The BM PRO Series is a professional indoor LED display solution designed with a slim and lightweight cabinet structure. Featuring a refined business-style appearance and multiple cabinet size options, it allows flexible splicing to build a customized indoor LED display wall for various commercial environments.
Engineered for stability and high-definition clarity, the series is ideal for demanding long-term indoor environments. With support for wall-mounted, hanging, and free-standing installations, the BM PRO Series is widely used as an advertising indoor LED display in:

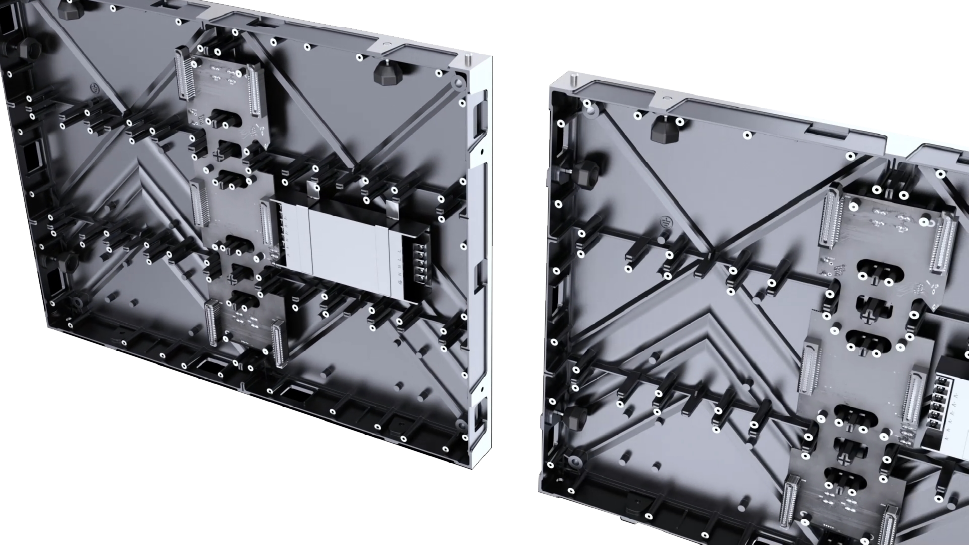

Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.
Die-casting aluminum cabinet combined with a 480×320mm aluminum LED module delivers superior structural strength and exceptional flatness. The all-aluminum design ensures efficient heat dissipation, high temperature resistance, corrosion protection, and extended service life. With enhanced safety performance, the complete display system reaches 5VB fireproof rating for reliable and durable operation.

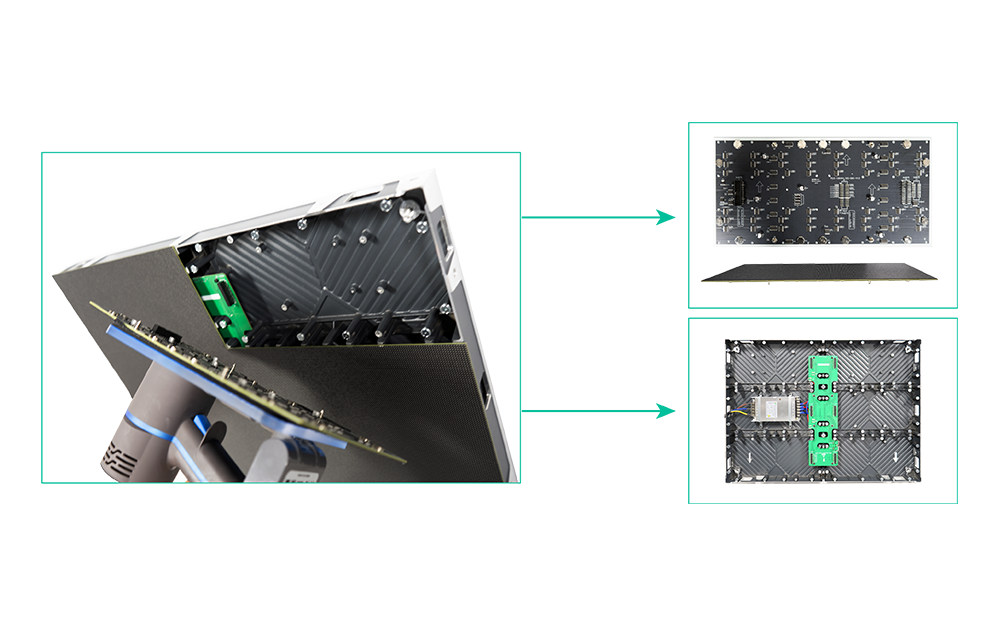

Our dual-service design allows each indoor LED display panel to be maintained from the front or back, providing flexible installation options in tight spaces and reducing long-term maintenance time and costs.
The BM PRO Series cabinets feature a cable-free design, which reduces the risk of connection failures and ensures a neat, clean appearance. This design simplifies installation and maintenance, saving labor, time, and costs, while providing a user-friendly experience for indoor LED display projects.
The BM PRO Series cabinets feature a hidden cable box with high-density silicone cables that resist extreme temperatures and provide excellent electrical insulation. This design protects cables from external damage.
Each LED module is equipped with a safety harness, preventing modules from falling during maintenance. This design ensures a safer working environment for technicians and minimizes the risk of damage to the indoor LED display.
The BM PRO Series indoor digital LED displays feature common cathode technology, which reduces heat generation and energy consumption, helping to lower operating costs and provide an environmentally friendly, energy-saving solution.
The BM PRO Series indoor HD LED displays feature a high refresh rate and high greyscale, delivering smooth, flicker-free images with exceptional color depth. This ensures delicate, true-to-life visuals, enhancing viewer experience and making your content more engaging and impactful.
With brightness reaching up to 10,000 nits, our advertising indoor LED displays can deliver clear and vivid content that captures attention even in well-lit indoor environments. This high brightness ensures your messaging remains impactful, enhances visibility, and captures audience attention in busy commercial environments.
| Model | BM1.2-PRO | BM1.5-PRO | BM1.8-PRO | BM2.5-PRO | BM1.8HI-PRO | BM2.5HI-PRO |
| Pixel Pitch(mm) | 1.25 | 1.53 | 1.86 | 2.5 | 1.86 | 2.5 |
| Pixel Matrix Per Sqm. | 640,000 | 422,500 | 288,888 | 160,000 | 288,888 | 160,000 |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1515 | SMD2020 | SMD1415 | SMD1921 |
| Brightness(nits) | ≤1000 | ≤1000 | ≤1000 | ≤1000 | 3500 | 4000 |
| Scan | 1/64 | 1/52 | 1/43 | 1/32 | 1/43 | 1/32 |
| Module Dimension | 320x160mm | |||||
| Cabinet Dimension | 640×480×48mm,640×640×48mm,320×480×48mm,640×320×48mm,640x160mmx48mm | |||||
| Cabinet Material | Die Casting Aluminum | |||||
| Cabinet Weight | 6.5KG | |||||
| Power Con. (W/Sqm.) | Max.650W/Avg.100-200W | Max.976W/Avg.200-300W | ||||
| Service Access | Full Front Access | |||||
| Refresh Rate(HZ) | ≥3840 | |||||
| Grey Scale(bit) | 16bit | |||||
| Contrast Ratio | 10000:1 | |||||
| Viewing Angle(H/V) | 160°/160° | |||||
| IP Rate | IP31 | |||||
| Operation Temperature | -20℃~+60℃ | |||||
| Operation Humidity | 10%~90% | |||||
| Input Voltage(AC) | AC 110/220V,50-60Hz | |||||
| * Specifications and photos are subject to change without prior notice. | ||||||

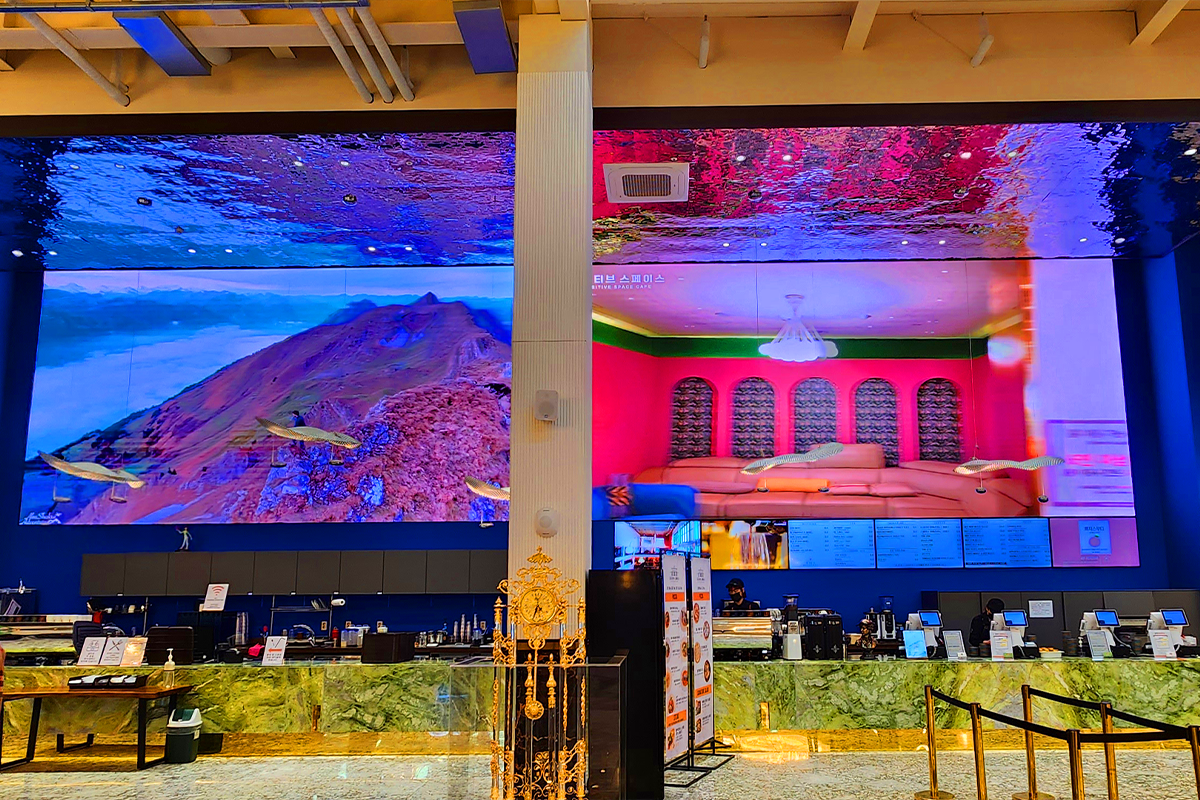

The BM PRO Series is ideal for a wide range of indoor environments, including conference rooms, airports, retail stores, auditoriums, theaters, houses of worship, hotels, shopping malls, and gaming centers. It is a versatile solution for any indoor HD LED display project.

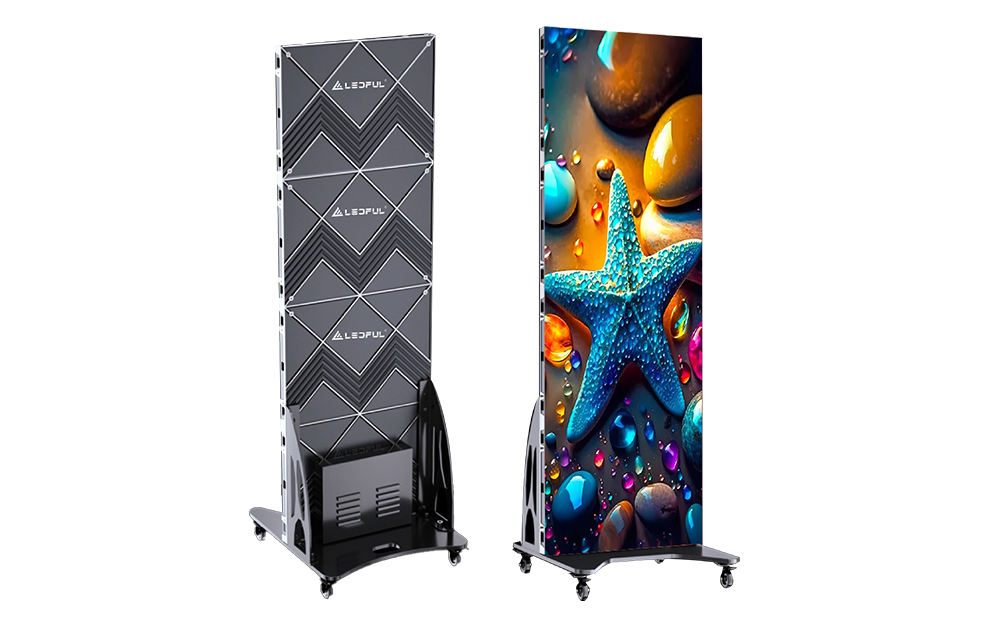

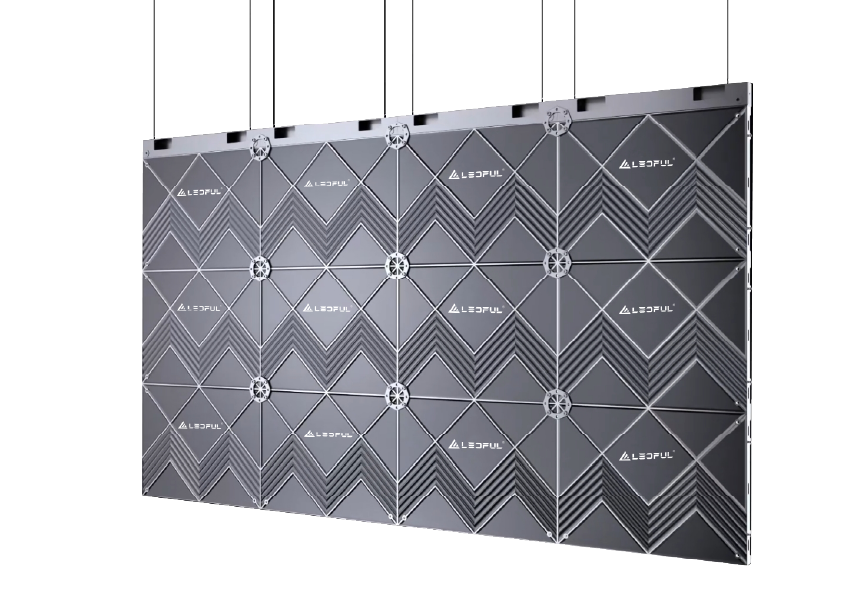

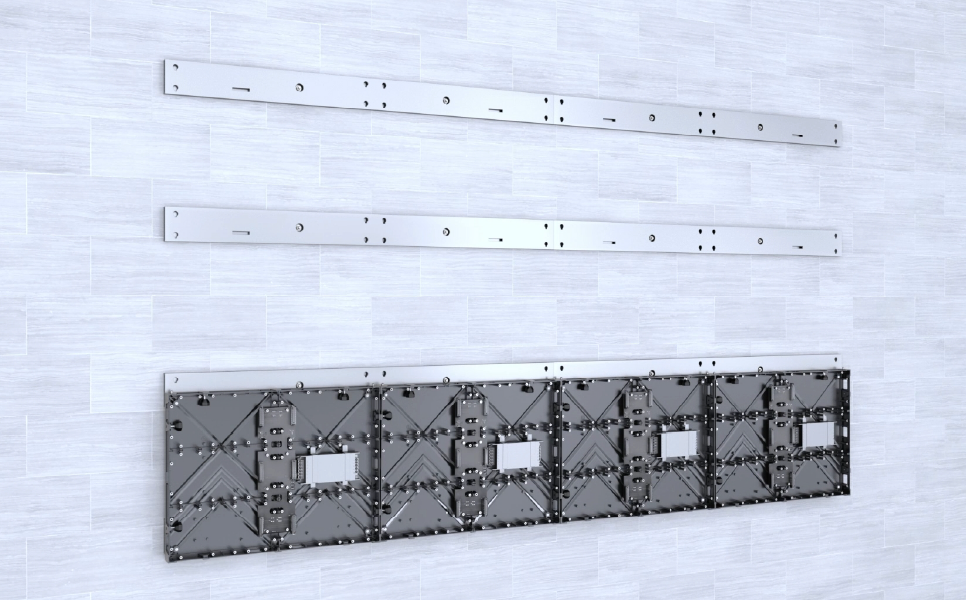

Our indoor LED display panels support flexible installation, including wall-mounted, hanging, and free-standing with wheels. This allows you to create customized layouts for your indoor LED display walls or modular setups.
With brightness reaching up to 10,000 nits, the display delivers clear, vivid content even in well-lit indoor environments. This makes it one of the best indoor LED display walls for capturing attention in commercial or public spaces.
The BM PRO Series uses common cathode technology, which reduces heat generation and energy consumption. This lowers operating costs and provides an environmentally friendly indoor LED display solution.
With high brightness, high refresh rate, and high greyscale, the BM PRO Series advertising indoor LED display delivers smooth, flicker-free visuals with vivid, true-to-life colors. It effectively engages viewers and ensures your content stands out in commercial and public indoor spaces.
The BM PRO Series includes standard models with pixel pitches of 1.25, 1.53, 1.86, and 2.5 mm. If you need other pixel pitches or cabinet configurations, please contact our team to create indoor HD LED displays tailored to your resolution, viewing distance, and application requirements.
