High-end Perimeter LED Screen Solution
● Aluminum Profile Cabinet
● Front & Rear Dual Maintenance Way
● Soft Top Cover & Soft Mask
● Easy Adjustable Base Support
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
High Refresh, High Grey Scale,Stable Performance
Ultra Light and Thin
Ultra Wide Viewing Angle
Front / Back Service
Remote Control
IP65 Protection
Ultra Wide Viewing Angle
Front / Back Service

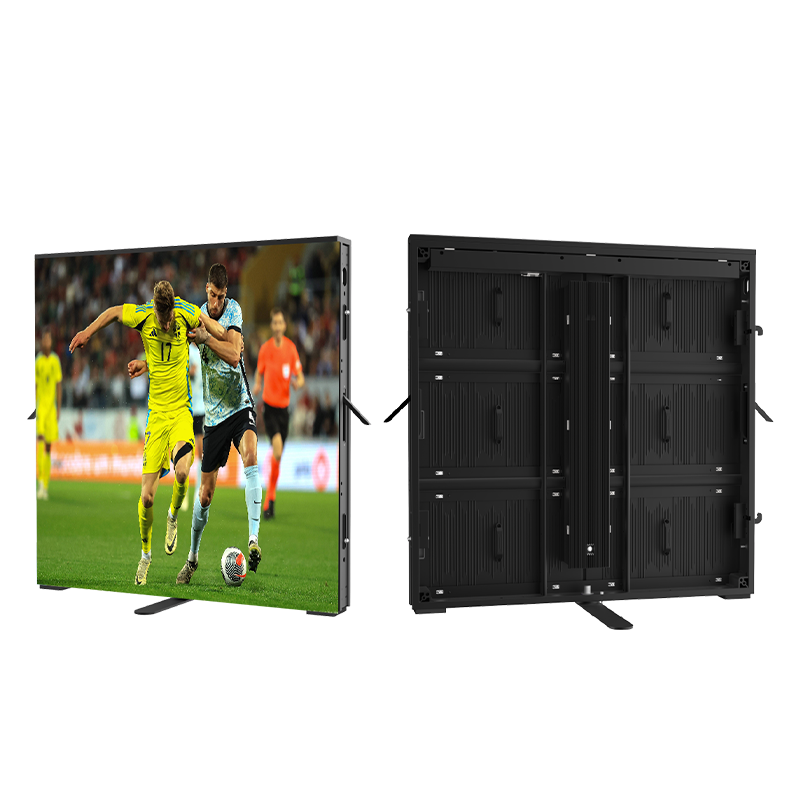

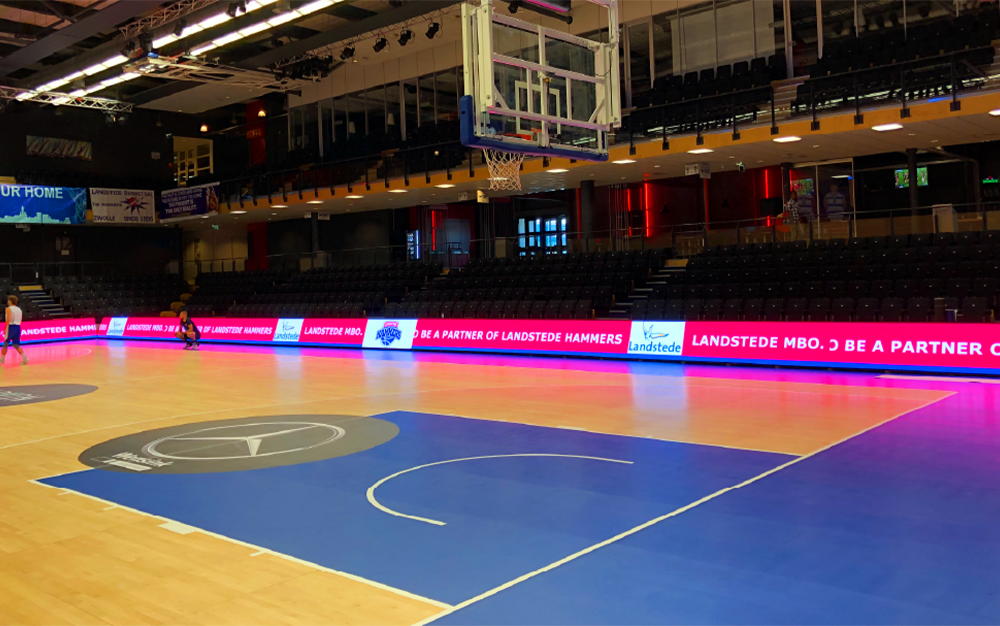

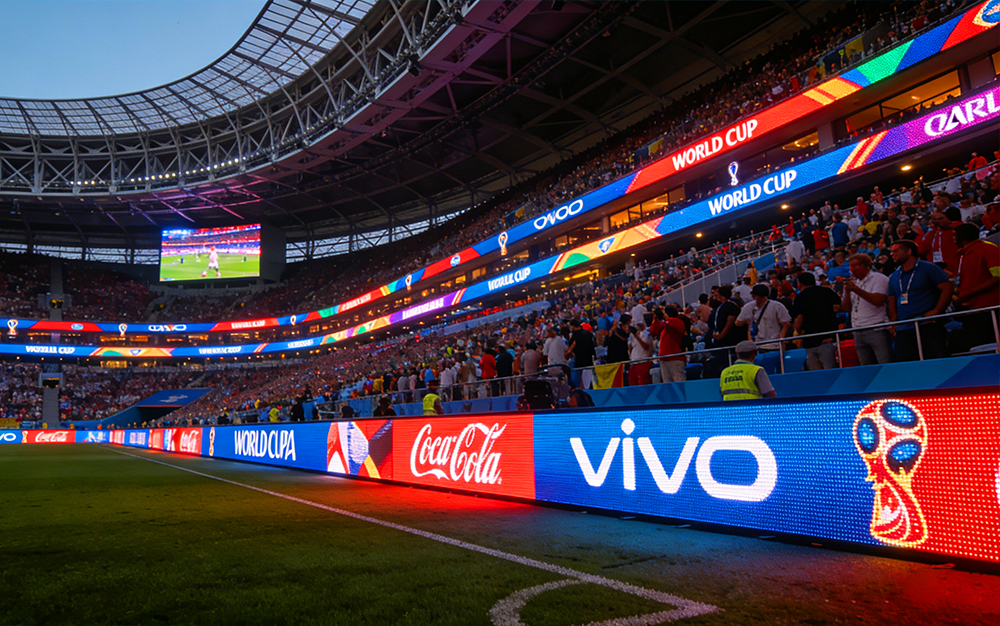

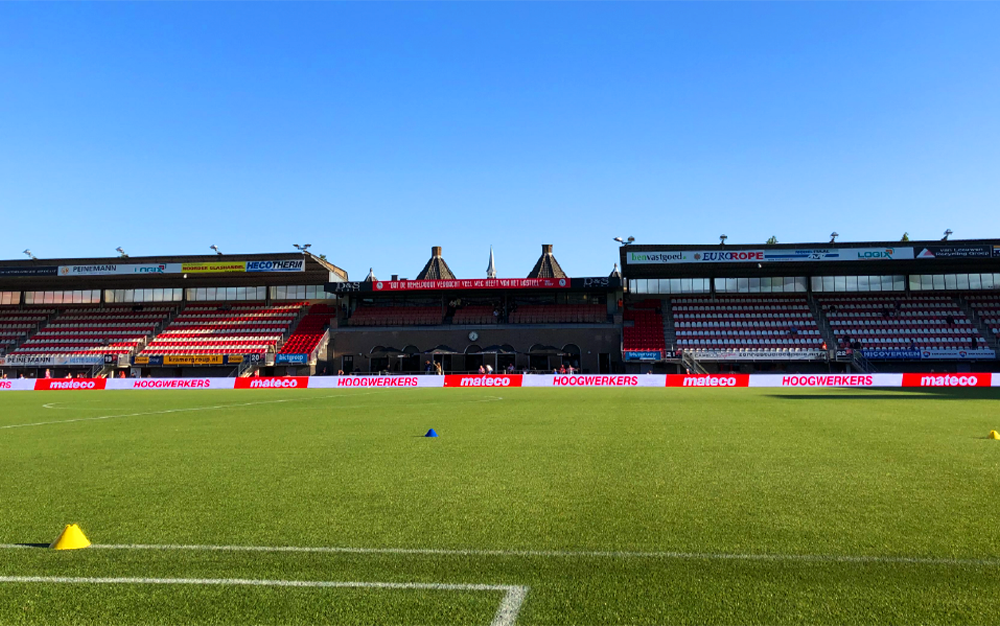

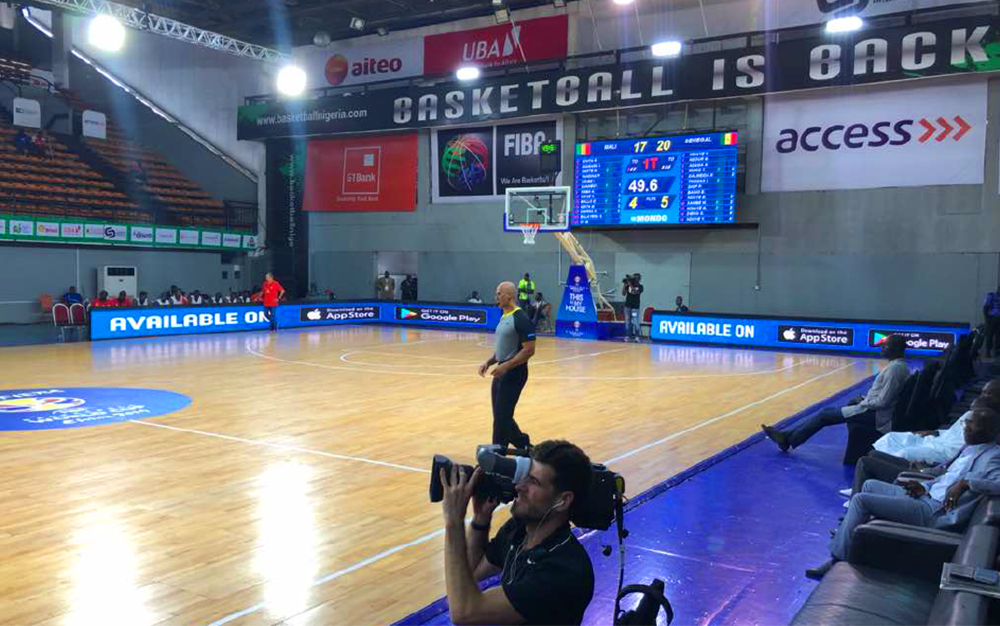

PM PRO is a new technological upgrade of perimeter screen, with a durable, thin and light cabinet made of aluminium. The cabinet size is 960×960 mm, as well as the advantages of higher protection class IP66,rear and front maintenance, soft mask and a better display effect. The new PM PRO products are commonly used in football stadiums, basketball stadiums, baseball, hockey, ice hockey, e-sports competitions and so on.

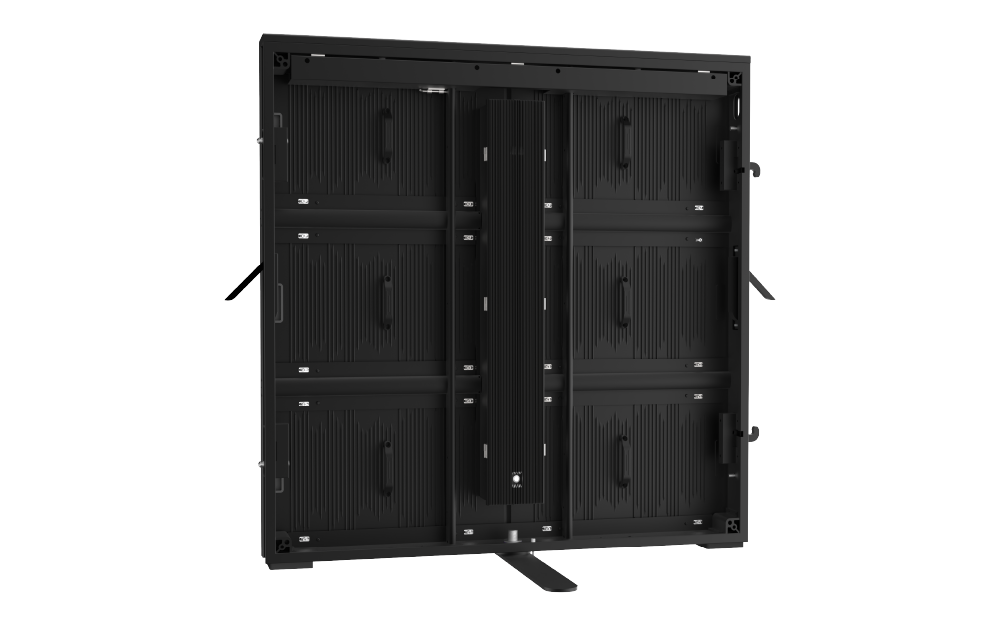

Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.
Adopt aluminium material, with good heat dissipation. Die-casting aluminium material with small tolerance. Hidden wire and unplugged design, more beautiful and neat. Cabinet size 960x960mm, light and thin, thickness 96mm, weight 28kg/pcs.

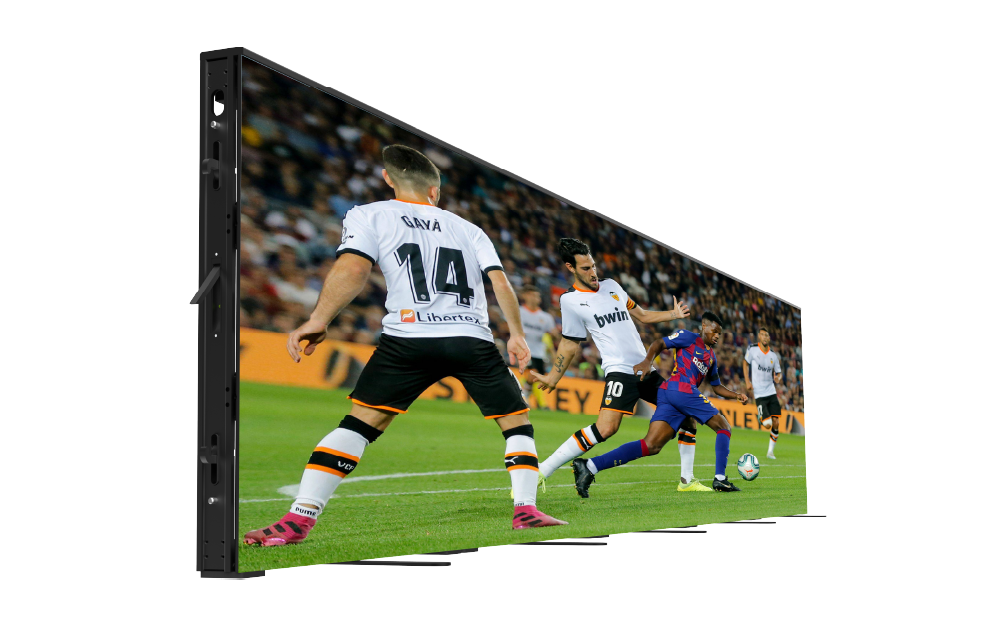

Using the first-line brand NationStar lamp beads, equipped with high refresh, high brightness 6000~7000nits, stable performance, lower damage rate, longer lifetime.

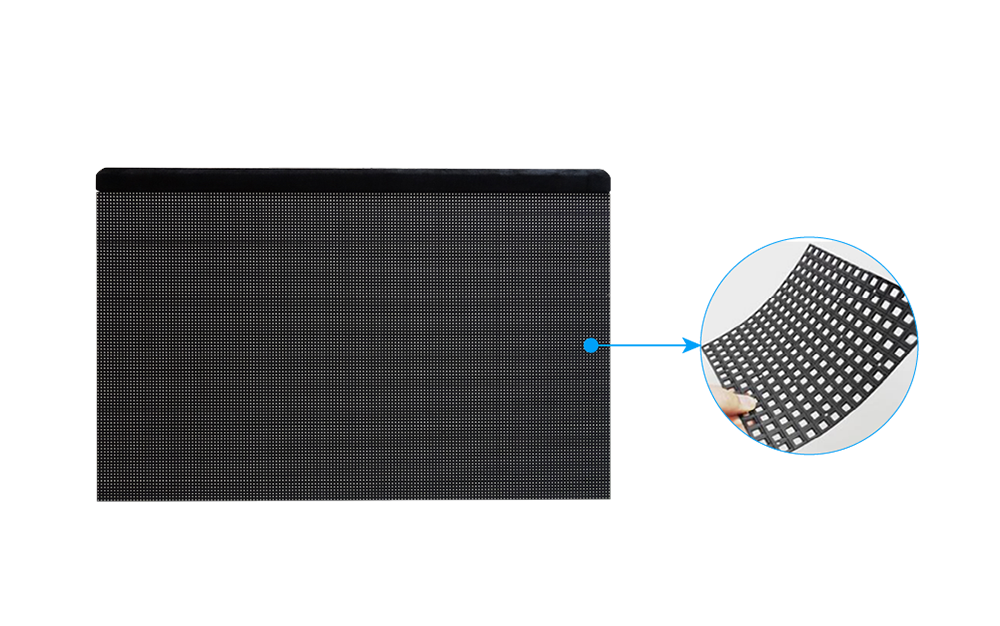

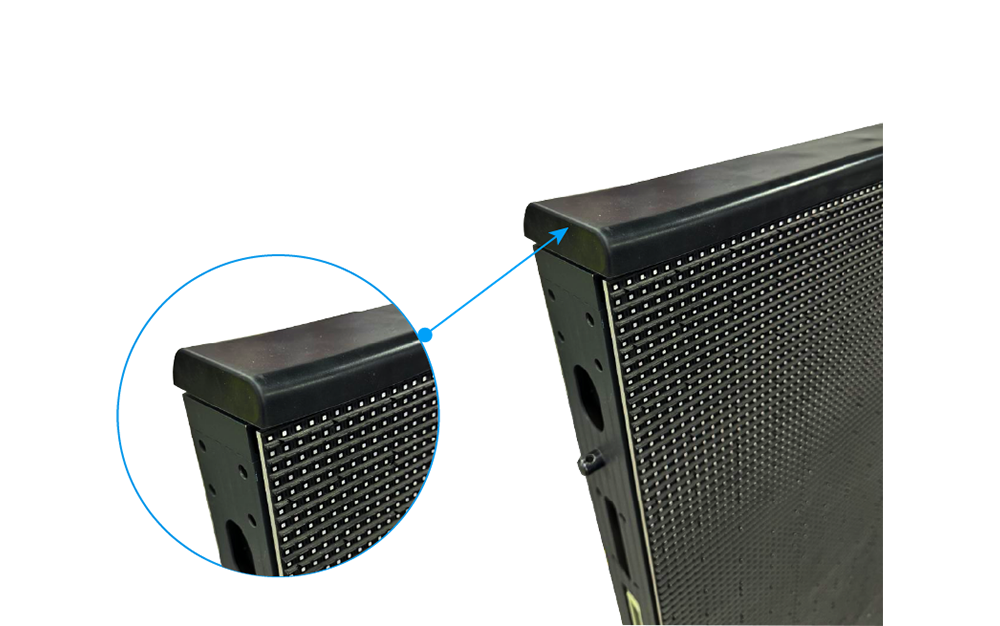

There is soft top cover on the top of each LED panel. And meantime the mask on the surface of LED display changed to soft rubber mask, those will protect the athletes from injury and also protect the screen well. It will be no problem if the screen are hit by the balls or other things by accidentally.
Soft rubber mask can protect the athletes from injury when hit by accidentally, enhance the contrast of LED display, a better performance, protect LED lamps and waterproof function.
Anti-slip safety handle let the installation and movement be easy and convenient.
PM PRO series can do signal and power backup solution, if there is any damaged of power supply, receiver card or LAN cables, the backup receiver card or power supply will connect and work normally, so the perimeter LED screen is still working normally without any problems, which is an important feature for some large sport events.
| Model | PM6-PRO | PM8-PRO | PM10-PRO |
| Pixel Pitch(mm) | 6.67 | 8 | 10 |
| Pixel Matrix Per Sqm | 22,477 | 15,625 | 10,000 |
| Pixel Configuration | SMD2727 | SMD2727 | SMD2727 |
| Brightness (nits) | 6000 | 6000 | 6000 |
| Scan | 1/6 | 1/5 | 1/4 |
| IP Rate | IP66 | IP66 | IP66 |
| Module Dimension | 480×320mm / 1.57×1.05ft | ||
| Cabinet Dimension | 960x960mm / 3.15×3.15ft | ||
| Cabinet Material | Die Casting Aluminum | ||
| Cabinet Weight | 28KG | ||
| Power Con. (W/sqm.) | Max. 650W Avg.100~200W | ||
| Service Access | Rear & Front | ||
| Refresh Rate (HZ) | ≥3840 | ||
| Grey Scale (bit) | 16 | ||
| Contrast Ratio | 8000:01:00 | ||
| Viewing Angle (H / V) | 140° / 140° | ||
| Operation Temperature | ﹣20℃ ~ +60℃ | ||
| Input Voltage (AC) | AC110/240V, 50/60Hz | ||
| * Specifications and photos are subject to change without prior notice. | |||
