● Faster Setup, Lower Labor Cost
● Indoor & Outdoor Ready
● Ultra-Thin & Lightweight Cabinet
● Quick Maintenance Design
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
Front/Rear Service
No Light Leakage
Light and Thin
Concave/Convex Curved Shape
Climbing support
Wide View Angle
Wide View Angle
Wide View Angle
The V&H Series is a rental LED display system built with a precision die-casting aluminum cabinet. Designed for frequent installation and dismantling, its ultra-thin and lightweight structure ensures efficient heat dissipation, structural durability, and easy handling for event crews. Supporting curved, 90° corner, and creative stage configurations, the system adapts to dynamic indoor and outdoor event environments. With flexible installation options, it is widely used for exhibitions, concerts, conferences, weddings, parties, hotels, schools, stadiums, theaters, auditoriums, automotive showrooms, etc.
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

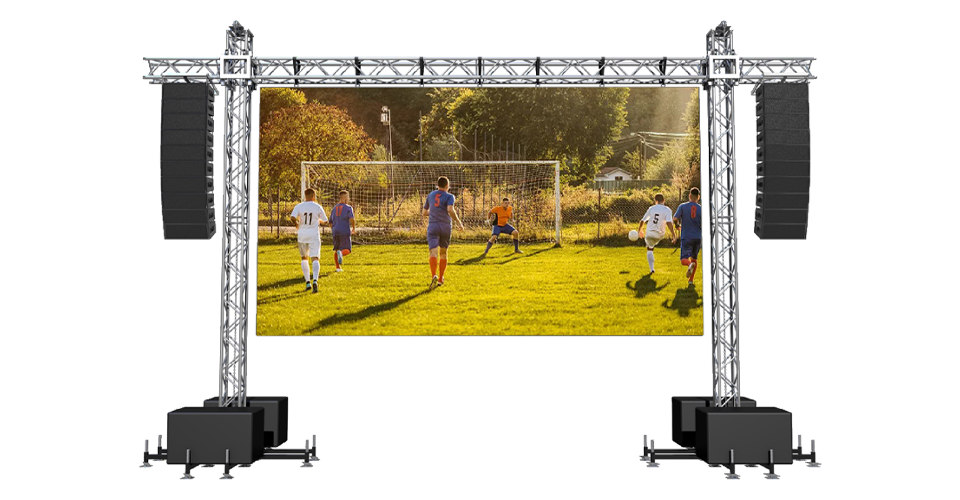

The truss structure supports hanging LED displays, with 500×500 mm panels weighing 8 kg each and 500×1000 mm panels weighing 14 kg each. Strong hanging bars ensure safe suspension, providing stable and reliable performance for rental projects.

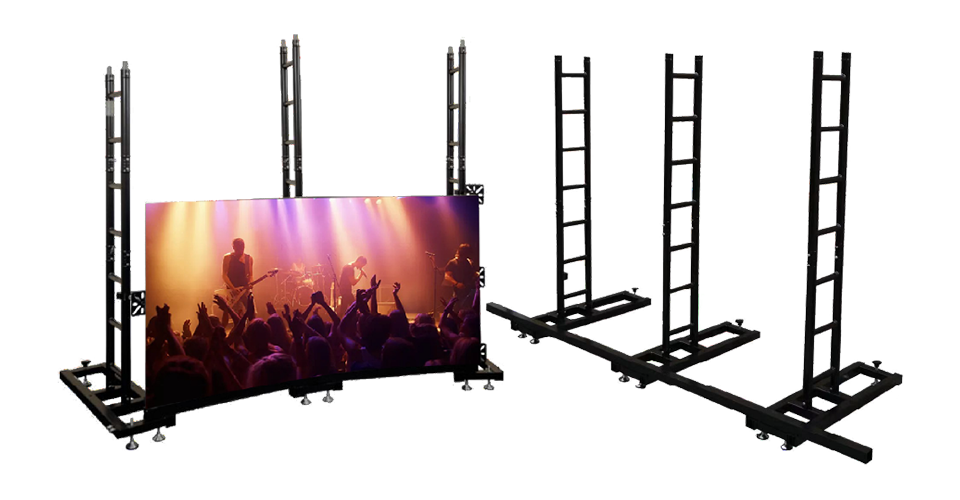

The LEDFUL floor stacking structure, made of aluminum alloy, features screw locks and clamps for secure assembly. The beam can serve as both a hanging and ground support, allowing easy installation and reliable locking for rental projects.

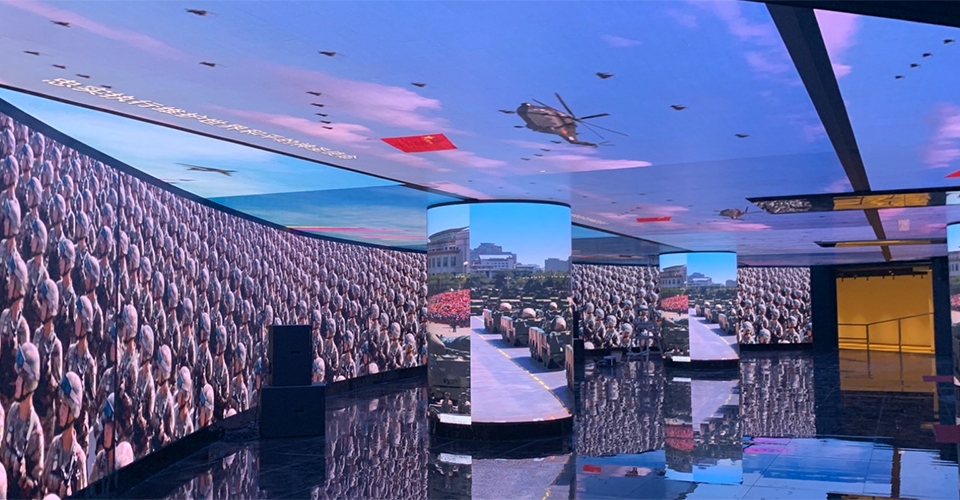

The die-cast aluminum cabinet provides excellent heat dissipation and is ideal for ceiling LED display setups, delivering an immersive visual experience from above.

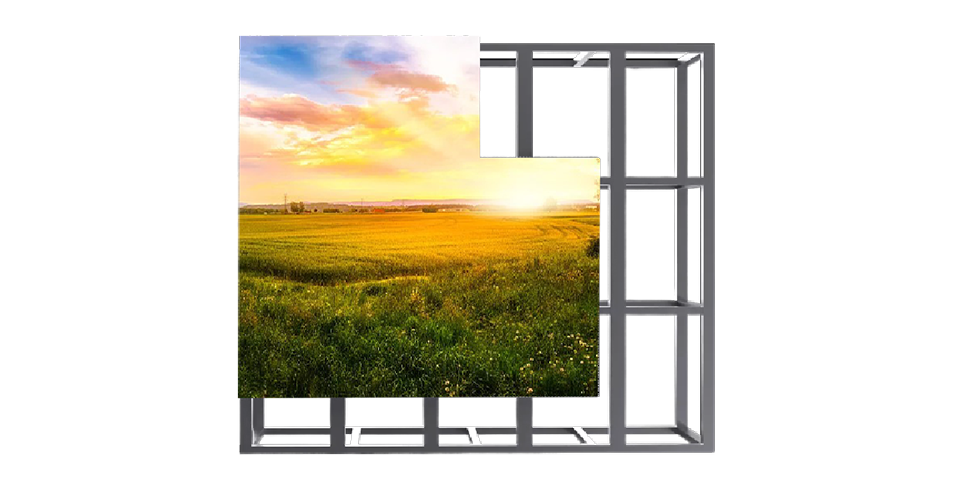

The wall-mounted structure, made of profiled aluminum or steel, securely fixes the screen using connecting plates. It ensures stable and reliable installation while allowing fast setup and easy maintenance.

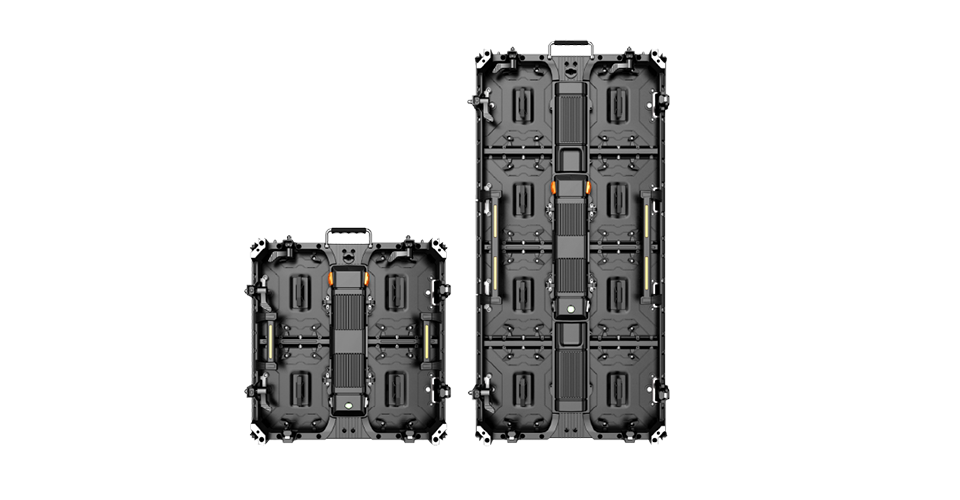

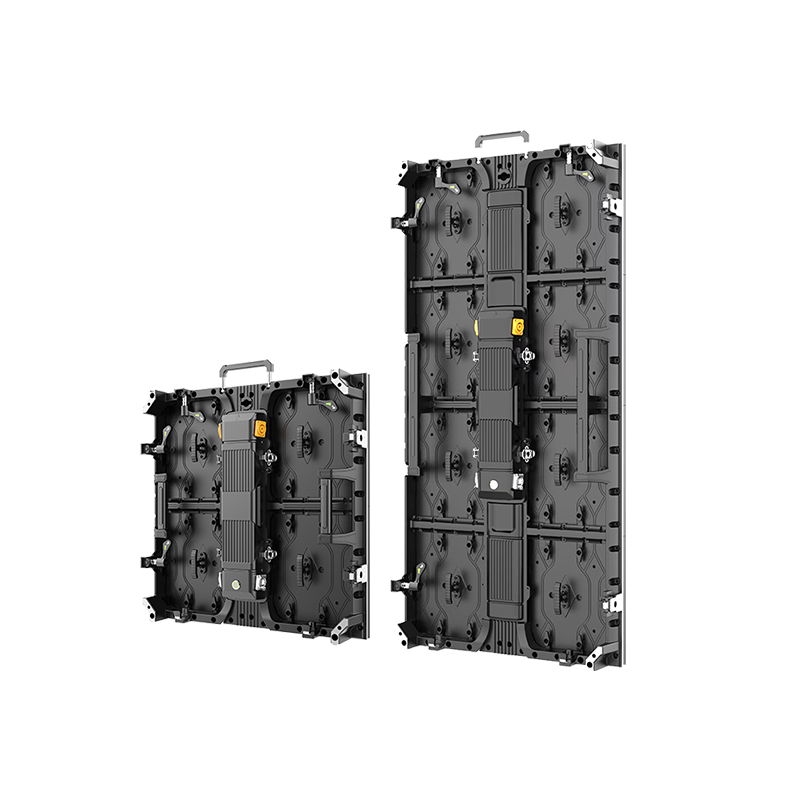

Available in 500×500 mm and 500×1000 mm options, with the larger panel offering a cost-effective solution that saves time during installation. The smaller 500×500 mm panel allows flexible combinations to build HD rental LED displays of various sizes, from 1.5 m to 3.5 m, providing versatility for both indoor and outdoor rental LED displays.

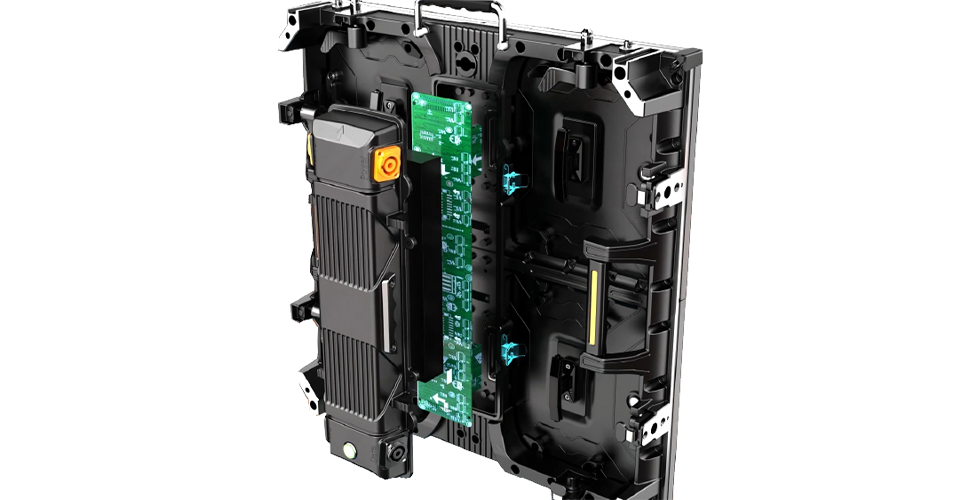

The power box and LED panels connect without cables using gold-plated pins for excellent conductivity. This ensures stable signal and data transmission while reducing labor and installation time, making it ideal for rental LED display projects.

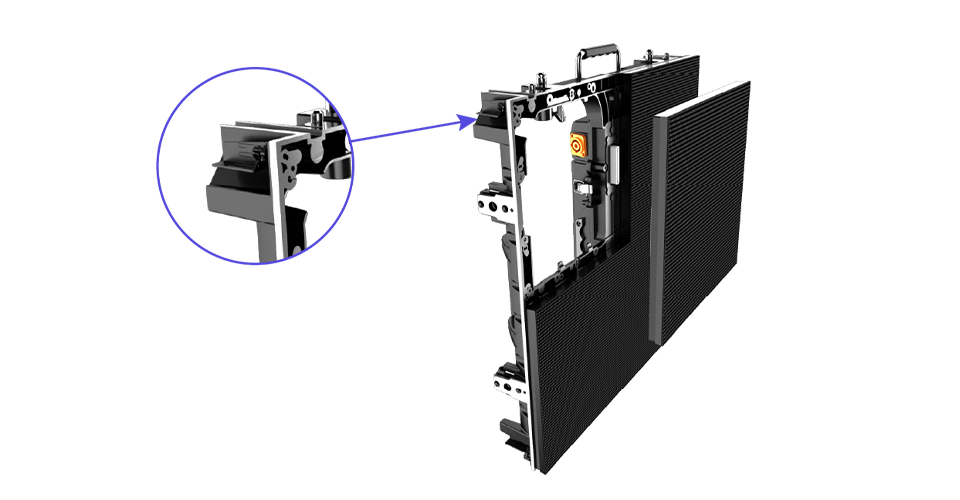

Each LEDFUL rental LED screen is equipped with four corner protectors to prevent damage during installation, disassembly, and transportation, keeping the screen safe and reliable throughout handling.

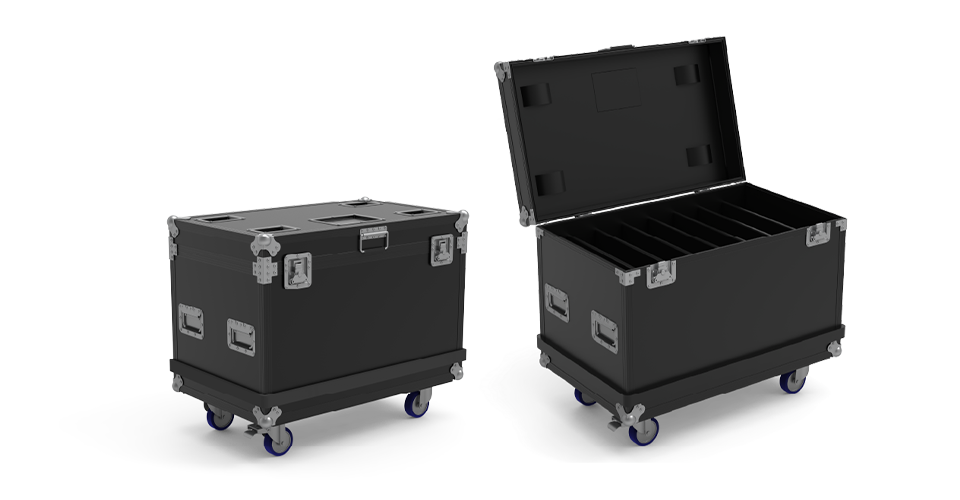

The flight case features wheels for easy mobility, making it perfect as a portable LED display solution for rental LED display applications. The exterior combines composite honeycomb panels with an aluminum frame, while the interior is lined with high-density EVA and pearl foam. An optional ABS plastic case is also available.

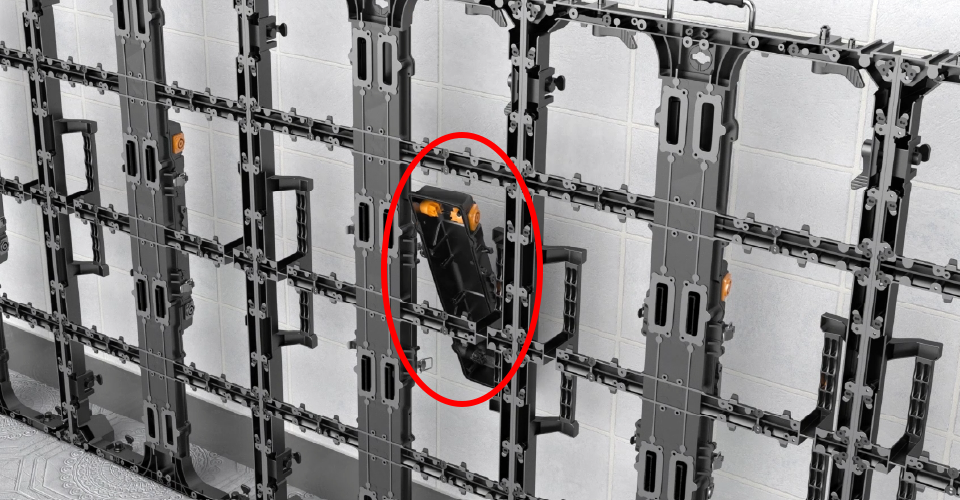

While rear maintenance is standard with screw-fixed modules, V&H Series rental LED displays offer an optional front maintenance system. Utilizing magnetic modules, components can be quickly removed and replaced from the front using a specialized service tool.
The flexible LED screen system enables creative stage designs, combining curved, 90° right angle, and flat panels seamlessly. Each 500×500 mm cabinet features 250×250 mm flexible modules that can bend up to 45° per cabinet, allowing eight cabinets to form a complete circle. The ultra-thin design ensures smooth curves and minimal gaps, providing a high-quality visual experience for HD rental LED displays. Self-adjustable locks make assembly and maintenance fast and reliable, ideal for versatile rental LED display projects.

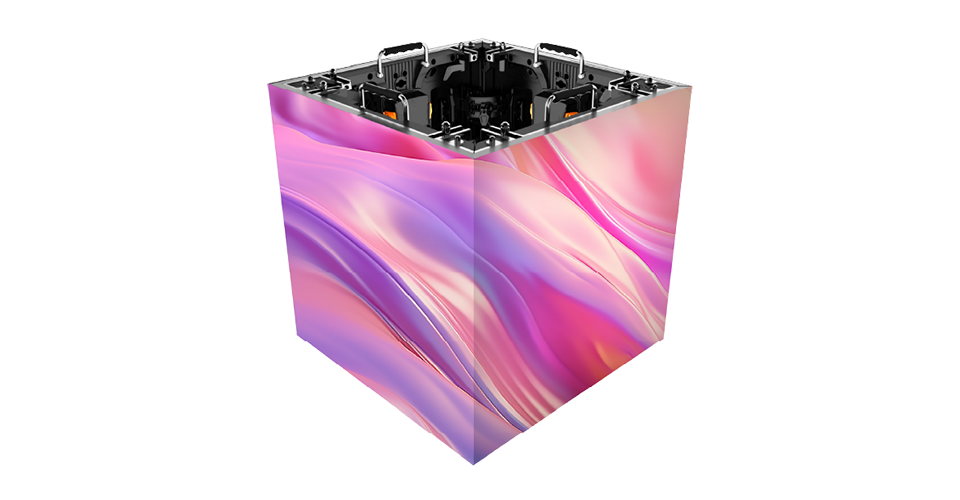

The V-PRO design supports precise 90° right angle, cube, and column-shaped configurations. Each 4-sided beveled cabinet ensures minimal gaps (as small as 6.65 mm) and die-cast aluminum construction for high precision. Magnetic front-maintenance modules and replaceable quick locks allow fast installation and easy maintenance. This flexible system is ideal for rental LED displays in creative indoor and outdoor events, providing versatile stage and installation possibilities.
| Model | VI/HI1.5 | VI/HI1.9 | VI/HI2.5 | VI/HI2.6 | VI/HI2.9 | VI/HI3.9 |
| Pixel Pitch(mm) | 1.56 | 1.95 | 2.5 | 2.6 | 2.97 | 3.91 |
| Pixel Matrix Per Sqm. | 409,600 | 262,144 | 160,000 | 147,456 | 112,896 | 65,536 |
| Pixel Configuration | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Brightness(cd/Sqm.) | ≥900 | ≥900 | ≥1000 | ≥1000 | ≥1000 | ≥1000 |
| Scan | 1/40 | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 |
| Module Dimension | 250×250mm | |||||
| Cabinet Dimension | V–500x500mm / H–500x1000mm | |||||
| Cabinet Material | Die Casting Aluminum | |||||
| Cabinet Weight | V–8KG / H–14KG | |||||
| Power Con. (W/Sqm.) | Max. 800W / Avg. 200-300W | |||||
| Service Access | Front / Rear | |||||
| Refresh Rate (HZ) | ≥3840(7680) | |||||
| Grey Scale (bit) | ≥16bit | |||||
| Viewing Angle(H/V) | 160°/160° | |||||
| IP Rate | IP31 | |||||
| Input Voltage(AC) | 110V/240V | |||||
| Model | VO/HO2.6 | VO/HO2.9 | VO/HO3.9 | VO/HO4.8 |
| Pixel Pitch(mm) | 2.6 | 2.97 | 3.91 | 4.81 |
| Pixel Matrix Per Sqm. | 147,456 | 112,896 | 65,536 | 43,264 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness(cd/Sqm.) | 4500 | 4500 | 5000 | 5000 |
| Scan | 1/24 | 1/21 | 1/16 | 1/13 |
| Module Dimension | 250×250mm | |||
| Cabinet Dimension | V–500x500mm / H–500x1000mm | |||
| Cabinet Material | Die Casting Aluminum | |||
| Cabinet Weight | V–8KG / H–14KG | |||
| Power Con. (W/Sqm.) | Max. 800W / Avg. 200-300W | |||
| Service Access | Front / Rear | |||
| Refresh Rate (HZ) | ≥3840(7680) | |||
| Grey Scale (bit) | ≥16bit | |||
| Viewing Angle(H/V) | 160°/160° | |||
| IP Rate | IP65 | |||
| Input Voltage(AC) | 110V/240V | |||
* Specifications and photos are subject to change without prior notice.
The V&H Series rental LED displays offer 500×500 mm and 500×1000 mm cabinet options. With various pixel pitch choices (e.g., 1.56 mm, 1.95 mm, 2.6 mm), the V&H Series can be configured into LED displays of different sizes, suitable for both indoor and outdoor events.
Absolutely. The V&H Series works perfectly as an indoor rental LED display or a rental outdoor LED display. Its high brightness ensures clear visuals outdoors, while the modular, lightweight cabinets make setup and maintenance simple indoors.
Absolutely. With flexible LED screen modules, the V&H Series can form curved, 90° angled, cube, or column designs, allowing you to customize your stage or event layout while maintaining seamless visuals.
Yes. Each panel is equipped with corner protectors, and optional wheeled flight cases make moving the screen safe and easy. These measures ensure your rental LED display arrives in perfect condition and is ready for use immediately.
Yes. The V&H Series can be used as a ceiling LED display, particularly for indoor applications. Its lightweight cabinet and efficient heat management help maintain reliable performance when installed overhead.
