Kinetic LED Display
● Modular Design
● Ultra-thin gap
● Independent Software
● Multiple Noise Reduction
● Front & Rear Maintenance
● Precision Matching Technology
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
Modular Design
Multiple Noise Reduction
Easy Maintenance
Precision Matching Technology
Independent Software

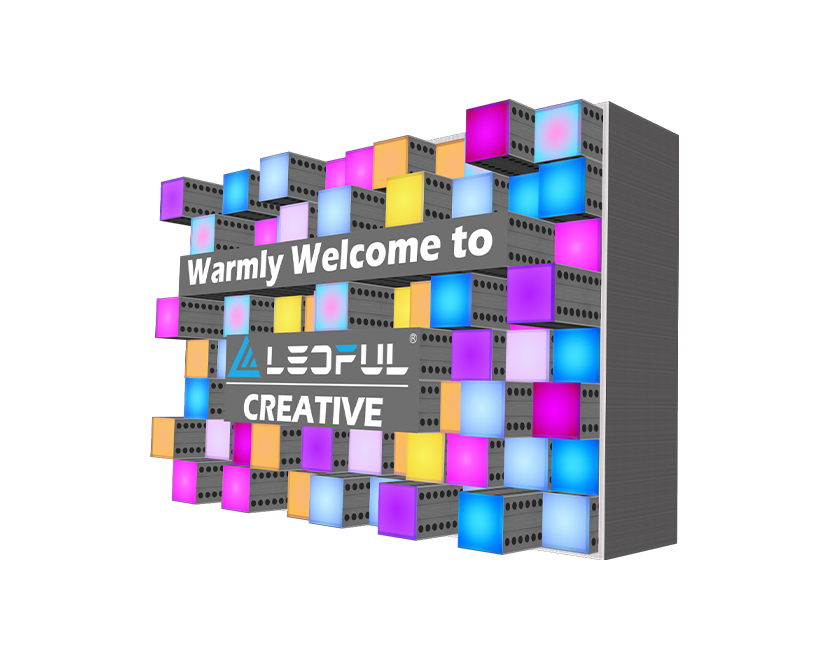

A kinetic screen is a high-end device that brings an immersive 3D experience through synchronized Z-axis motion. As an “all-in-one” rental solution, its advantages in quick setup and impactful visual effects ensure your event stands out from the start, adapting well to both indoor and outdoor environments!
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.
Kinetic LED Display is an important choice for advertisers who pursue novelty and eye-catching. It can bring higher advertising exposure and conversion rate, and expand its application scenarios and market space.

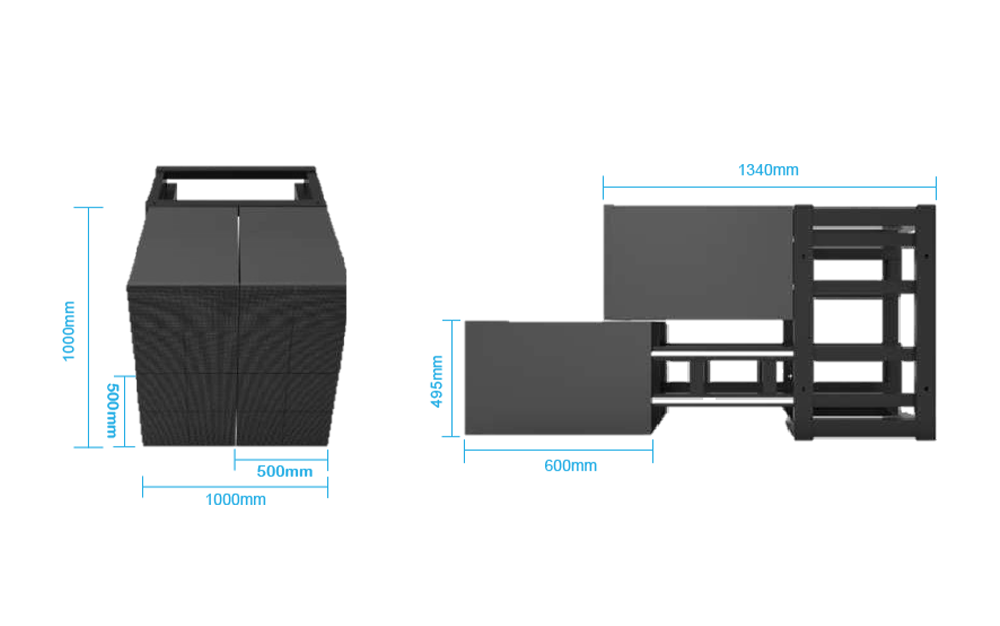

Die-Casting Aluminum Cabinet and Module
500mmx500mm 4-in-1 independent die-casting aluminium cabinet, more accurate and faster installation.
* 500×500 cabinet by 250×250 module or 640×480 cabinet by 160×160 module

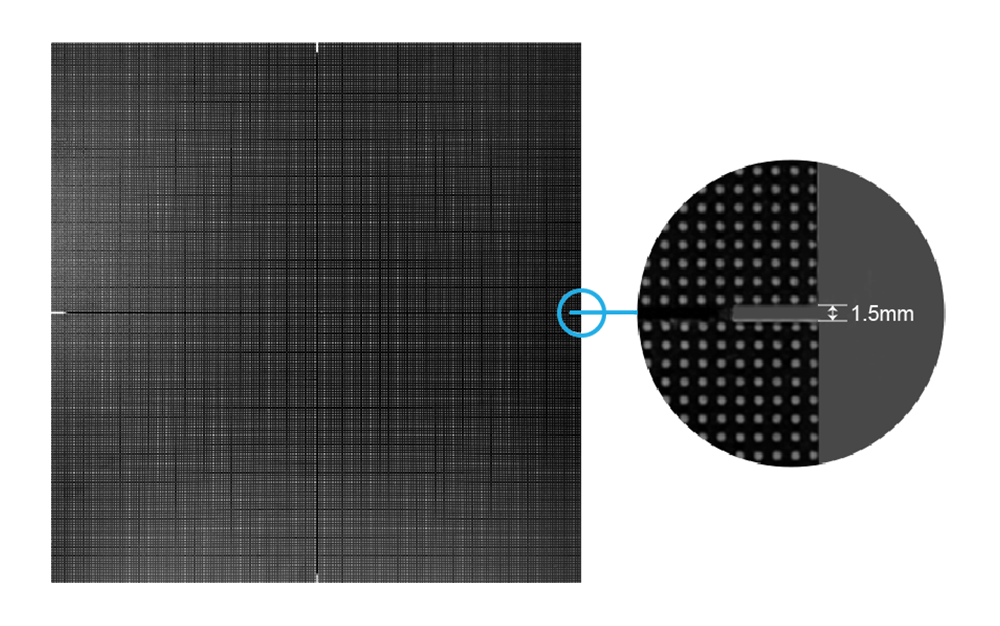

Only 1.5~2mm space enables the continuity of the moving image.

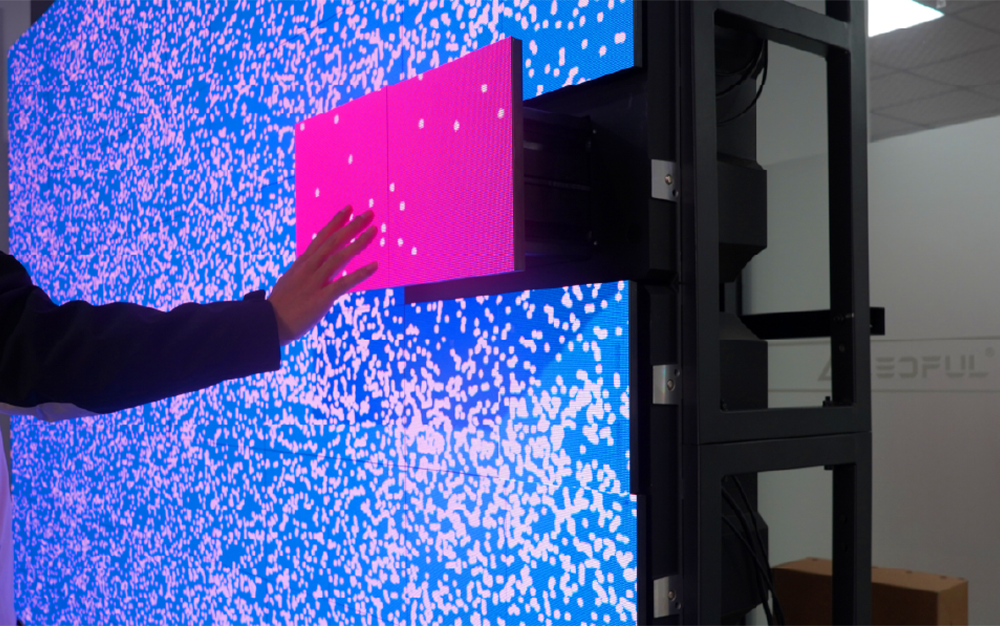

With radar set, it supports event-triggered interaction, real-time interaction and other methods to bring real-time fun and participation to the audience.

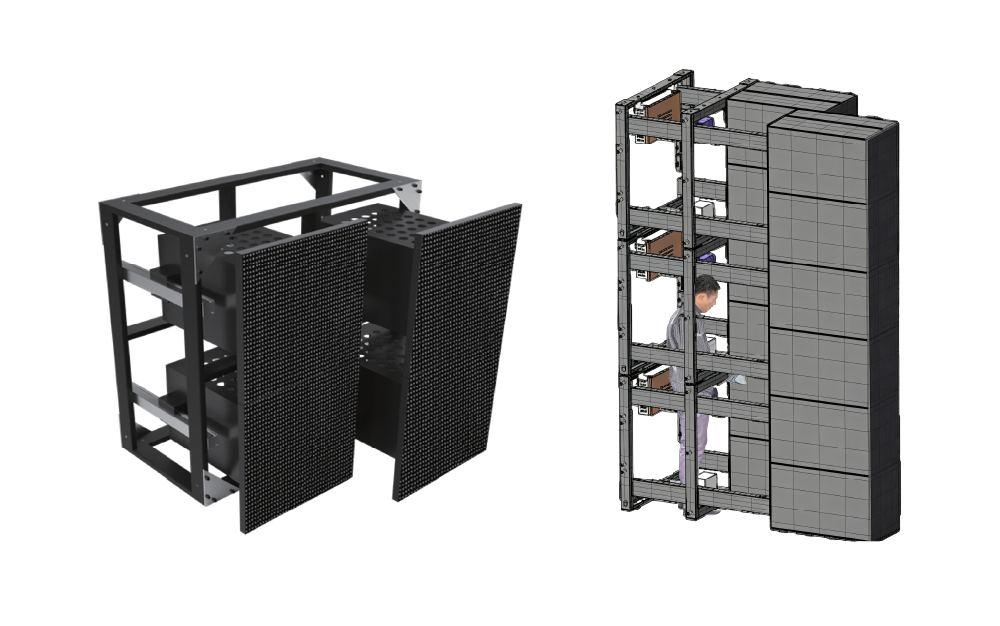

Dual service mode of front and rear design to save your Maintenance Time and Cost.
Indoor : Front Maintenance
Outdoor : Rear Maintenance

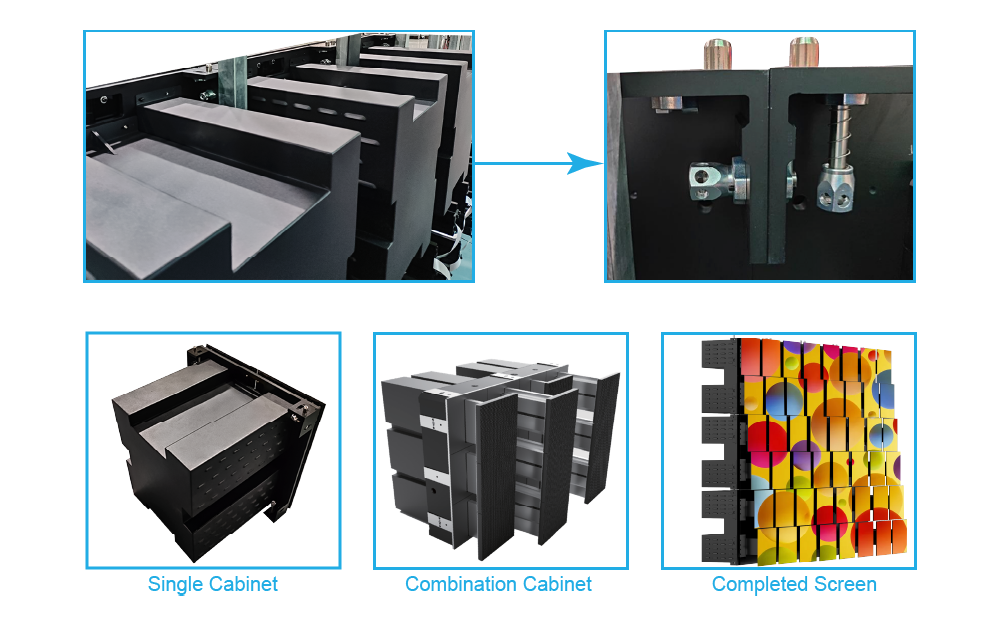

It enables quick installation, tool-free operation, and enhanced safety while reducing assembly time and labor costs. It also ensures reliable connections and maintenance convenience for users.
Movable Lightweight Structure makes sure any place to use KINETIC screen and on-site quick set-up.
Mechanical part controlled by DMX512 and Display part controlled by Video Processor. Combined operation for the best visual performance.
Adopt closed-loop stepping drive system, effectively reduce 70% noise.

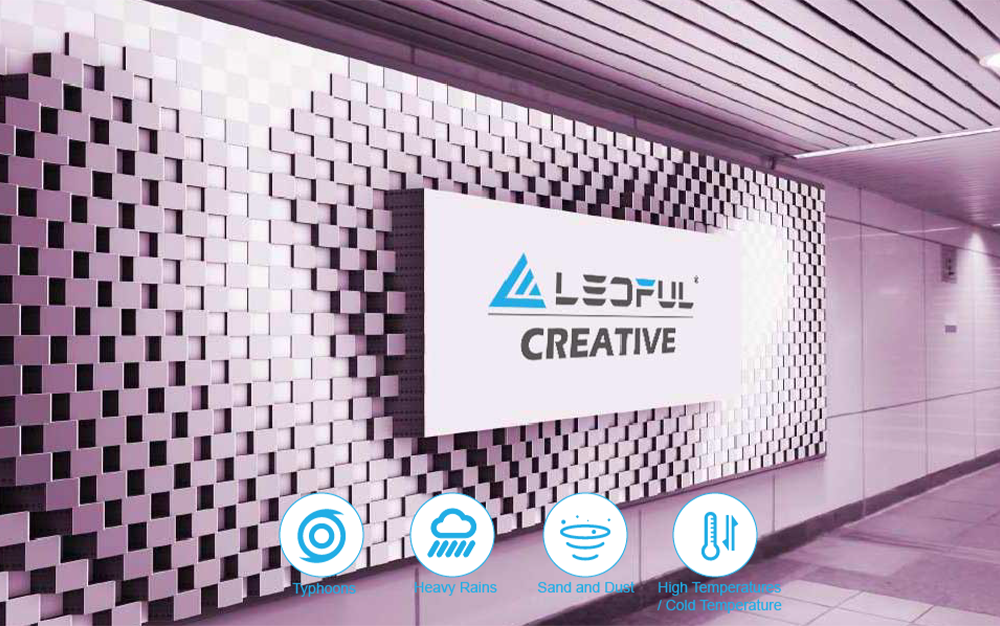

Withstand severe weather such as typhoons, heavy rains,sand and dust, high temperatures, and severe cold temperature.

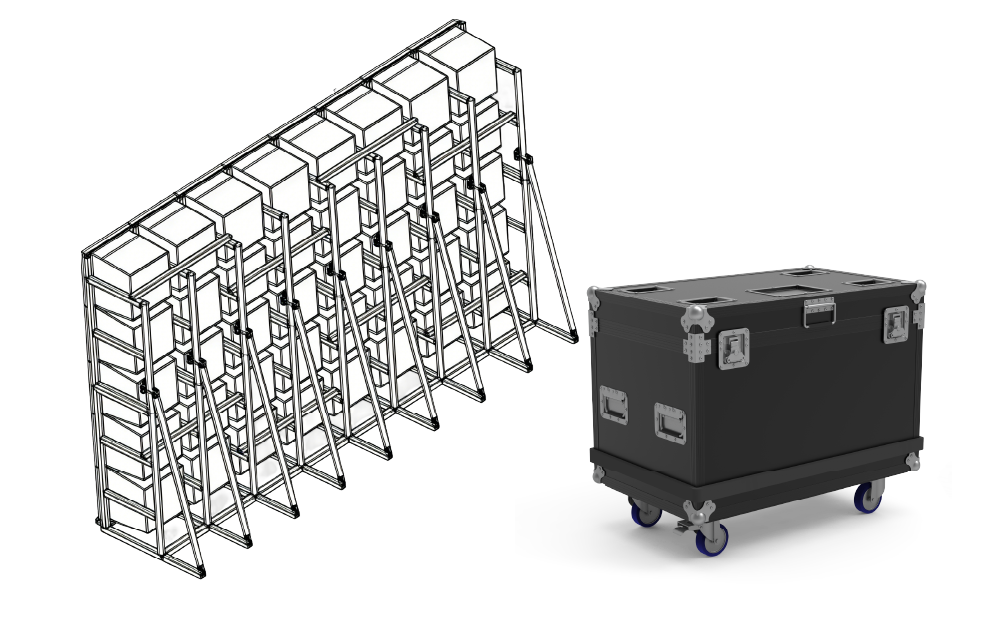

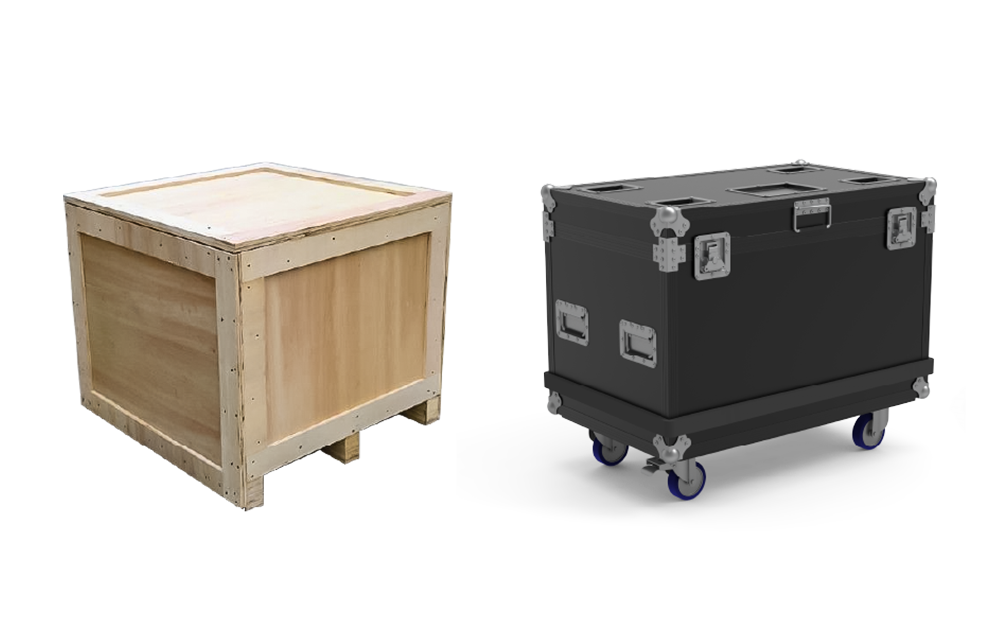

Flight cases provide durable, airtight protection and smooth-rolling mobility, ensuring the screen stays safe and is effortlessly transported.

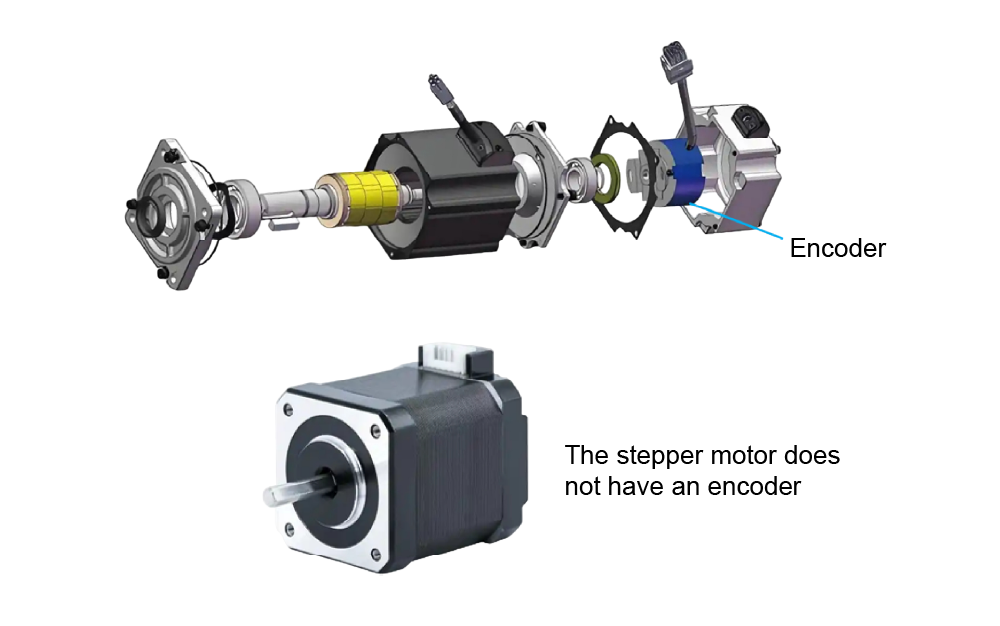

Our self-developed bus-type servo motor solves the high cost of commercial servos and performance limitations of open-loop steppers.
It uses CAN Bus with self-error correction, supporting up to 48 terminals.
With 32-bit MCU, magnetic encoder and FOC, it reaches 1500 RPM with high torque, low noise and high efficiency.
The integrated closed-loop system ensures absolute position control and stable position holding.
Real-time feedback enables precise, quiet and energy-saving operation.
1)Solution Selection
We recommend that the device have at least 12 rows and 12 columns (144 motion units). Too few units will not be able to fully utilize the coordination between mechanical movement and the image.
Area:
1) Module 128*128mm: 2.3㎡ 0.0164㎡ per unit 8 units (4×2) 0.132㎡ per unit
2) Module 160*160mm: 3.7㎡ 0.0256㎡ per unit 12 units (4×3) 0.311㎡ per unit
3) Module 250*250mm: 9㎡ 0.0618㎡ per unit 4 units (2×2) 0.25㎡ per unit
4) Module 320*320mm: 14.9㎡ 0.102㎡ per unit 6 units (2×3) 0.622㎡ per unit
5) Module 500*500mm: 36㎡ 0.25㎡ per unit 4 units (2×2) 1㎡ per unit
The more cabinets, the more visually stunning it is.

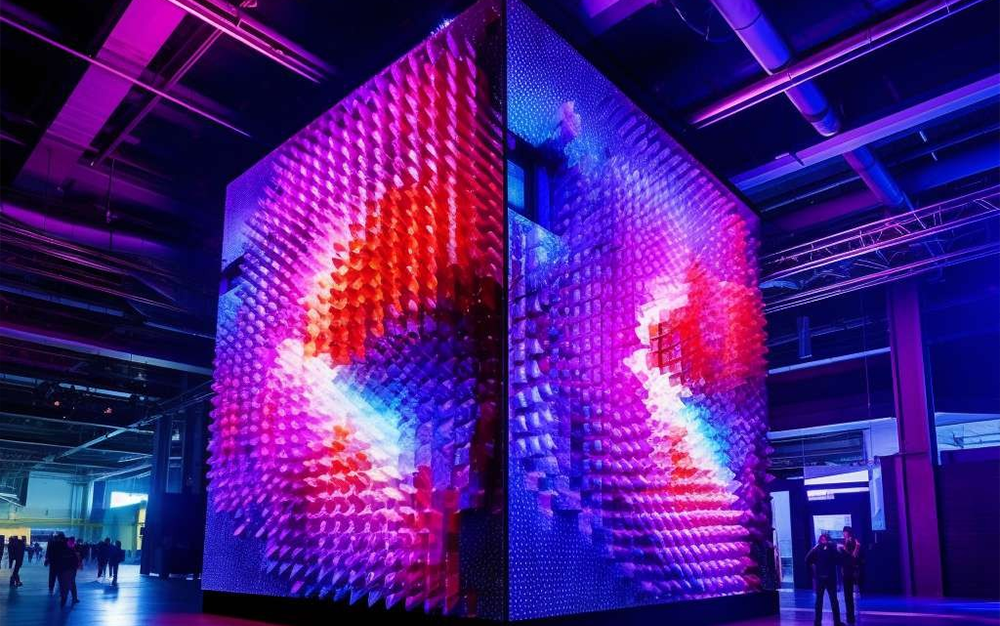

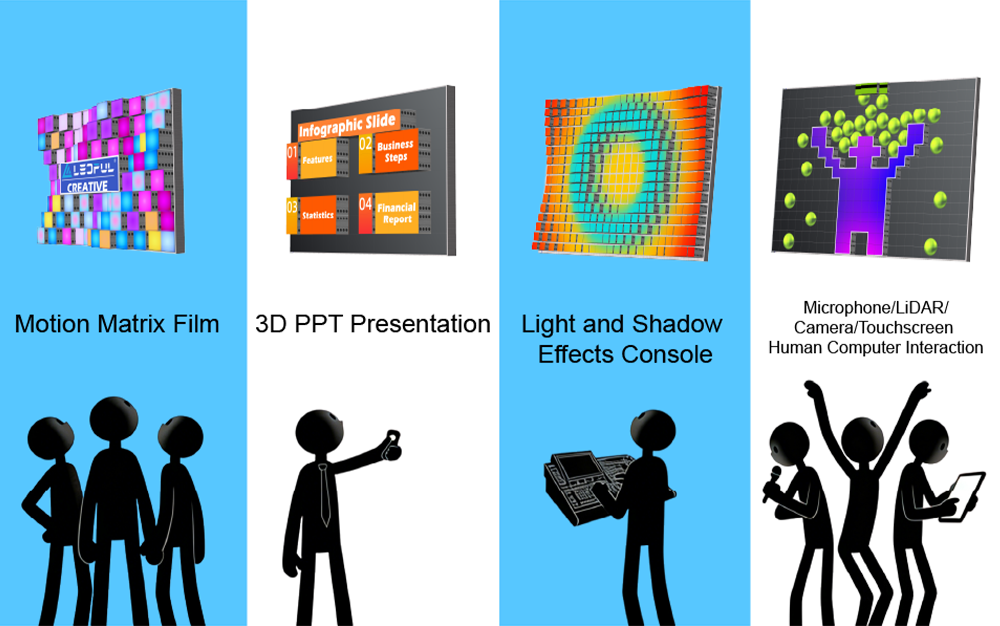

Our kinetic Display not only delivers exceptional display performance but also integrates a variety of advanced interactive technologies, enabling true two-way interaction between the screen and the audience. It significantly enhances on-site engagement and immersion—ideal for stage performances, exhibitions, and commercial spaces—offering audiences a novel and captivating experience.
| KINETIC-Indoor | KINETIC-Outdoor | ||||||
| Model | KINETIC1.7-128 | KINETIC1.9-160 | KINETIC1.5-250 | KINETIC1.9-250 | KINETIC2.6-250 | KINETIC2.5-320 | KINETIC10.4-500 |
| Pixel Pitch(mm) | 1.78 | 1.98 | 1.56 | 1.95 | 2.6 | 2.5 | 10.4125 |
| Module Diamention(W×H) | 128×128 | 160×160 | 250×250 | 250×250 | 250×250 | 320×160 | 500×250 |
| Gap between units(mm) | 0.5(0.3~0.7) | 1(0.5~1.5) | 2(2~2.5) | 2(2~2.5) | 2(2~2.5) | 2(1.5~2.5) | 5(3.5~6.5) |
| Motion Unit Dimension(WxH)(mm) | 128×128 | 160×160 | 250×250 | 250×250 | 250×250 | 320×320 | 500×500 |
| Resolution of Unit | 72×72 | 80×80 | 160×160 | 128×128 | 96×96 | 128×128 | 48×48 |
| Cabinet Dimension(Motion Units Qty) | 512×256（4×2） | 644×483 (4×3) | 500×500(2×2) | 500×500(2×2) | 500×500(2×2) | 640×960（2×3） | 1000×1000（2×2） |
| Cabinet Thickness (Standby mode) (mm) | 380 | 320 | 320 | 320 | 320 | 650 | 1430 |
| Max.Forward Stroke(mm) | 300 | 200 | 200 | 200 | 200 | 400 | 600 |
| Max.Forward Speed(mm/s) | 600 | 300 | 500 | 500 | 500 | 600 | 800 |
| Min. Forward-back Cycle Time(s) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 1 | 1.5 |
| Motion Qty per Sqr | 61 | 39 | 16 | 16 | 16 | 10 | 4 |
| Weight per Sqr(kg) | 152 | 75 | 48 | 48 | 48 | 161 | 171 |
| Max.Power Capacity(w/m2) | 1250 | 965 | 720 | 720 | 720 | 1157 | 1350 |
| Power Supply Requirement | ≤3KW:220V single phase ≥3KW:380V Three phases/Five wires | ||||||
| Screen Brightness(cd/m2) | ≥600 | ≥5000 | |||||
| IP Rate | IP55 | IP65 | |||||
| Operation Temperature | 0℃ ~ 40°℃ | -10℃~60℃ | |||||
| Input Voltage (AC) | AC110V / 220V, 50~60Hz | ||||||
| Environmental Attentions | No etchant gas, No inflammable gas, No oiled mist and dust | ||||||
| Heat Dissipation | Open self-cooling (with fan cooling) | Half-sealed self-cooling (with fan cooling) | |||||
| Control Software | Master software | 1) After the equipment is finished, use the computer to distribute the matrix, and 1 machine matches once.(Do not need to climb to the device, manually set the < ID number > marshalling queue) 2) After the device is finished, use the computer to flatten the screen. (You don’t need to climb into the device once you’ve reached it, manually adjust by pressing keys) 3) The software can monitor the status of all the motors and configure, adjust, and update the firmware online. 4) The software can transcode the DMX512 protocol to drive the device movement. (Compatible with all stage lighting software) | |||||
| Program Programming Software | 1) “dynamic video,” “human-computer interaction,” “3D PPT,” “interactive games,” “dance lights” a variety of programs mixed arranged in a broadcast list, loop. 2) < program content file > and < glossary > upload FTP system, provided for the device to download. | ||||||
| Control Center | 1) Control device hardware (switching, restarting, volume regulation). 2) Unified management of multiple software (video player, interactive broadcast, 3DPPT, interactive games) running, switching, pre-reading, pause, on-stage and off-stage operations. 3) Open API interface, allowing third parties to control the entire set of equipment. | ||||||
| Mobile phone central control | 1) Control equipment’s switching, restarting, troubleshooting, etc., and the machine state. 2) The mobile phone and the < Control Center > data are interconnected, and use the mobile phone to switch content. 3) The phone controls and configures the software that is running, 4) As input devices for human-machine interaction (touchscreen, camera, microphone). | ||||||
| Production Software | Affter Effices plugin (Sports video production) | 1) 3D model with a wavy screen that can be viewed in real time. The plug-in recognizes the black-and-white changes as stretching motion. See the bump effect in real time and modify it instantly. 2) Check the motion speed, when the motion speed exceeds the limit of the device, an alarm will be triggered. The software can calculate the speed of motion that meets the requirements | |||||
| MShow（3D PPT） (Speech courseware production) | 1) Presentation software specifically developed for wave screens (similar to Office PowerPoint) 2) The software is for the general public, and no expertise is required to edit the coursework. 3) You can control the device’s content display through a speaker pen. | ||||||
TouchDesigner plugin (Human-computer interaction production) | 1) 3D model with a wavy screen that can be viewed in real time. The plug-in recognizes the black-and-white changes as stretching motion. See the bump effect in real time and modify it instantly. 2) The running data is converted through the plug-in into motion data that our devices can read. | ||||||
| Stage light software (Stage lighting effects) | 1) Support ArtNet / sACN protocol (ETN) 2) Support DMX512 protocol (wired) | ||||||
| Unreal Engine 5 plugin (Interactive Game Production) | 1) 3D model with a wavy screen that can be viewed in real time. The plug-in recognizes the black-and-white changes as stretching motion. See the bump effect in real time and modify it instantly. 2) The running data is converted through the plug-in into motion data that our devices can read. | ||||||
